Copper(II) Phthalocyanine

Name: Copper(II) Phthalocyanine
SKU: 0

CAS No.: 147-14-8

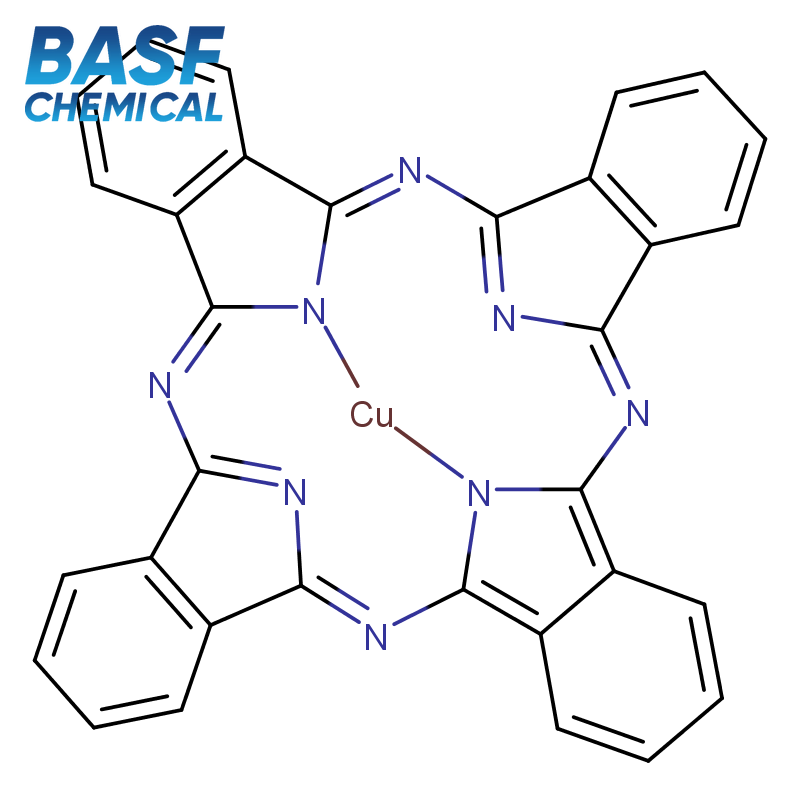

Molecular Formula: C32H16CuN8
Molecular Weight: 576.07

Phone ：+86 14705416755

WhatsApp ：+86 14705416755

Email ：info@basfsdchem.com

Contact Us

product description

Copper(II) phthalocyanine, known as CuPc, has been used as an electron donor?with fullerene-C60 or phenyl-C61-butyric acid methyl ester (PCBM) in vacuum-deposited organic photovoltaics (OPV).?Power conversion efficiency of about 1% has been achieved [2] and improved efficiency of 4% with pentacene-doped CuPc layer .

Chemical Properties

Property	Value
Melting point	600°C (dec.)
Density	1.62[at 20℃]
Storage temp.	Inert atmosphere,Room Temperature
Solubility	insoluble in H2O, ethanol; soluble in concHSO 4
Colour Index	74160

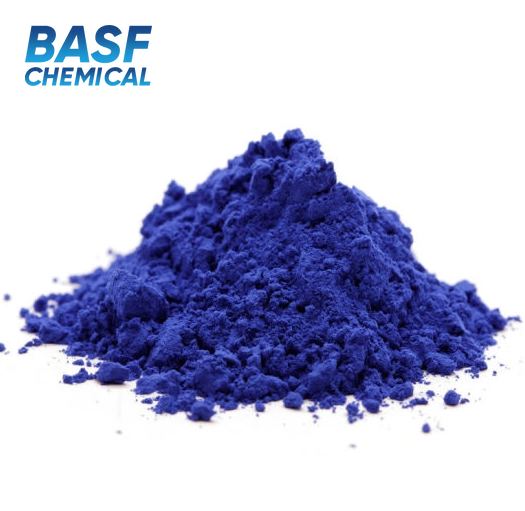

Form	Fine Crystalline Powder
Color	Dark blue
Odor	Odorless
Water Solubility	<0.1 g/100 mL at 20 ºC
λmax	602nm(CHCl3)(lit.)
Hydrolytic Sensitivity	4: no reaction with water under neutral conditions
Merck	14,2520
BRN	4121848
Exposure limits	ACGIH: TWA 1 mg/m3NIOSH: IDLH 100 mg/m3; TWA 1 mg/m3
InChIKey	XCJYREBRNVKWGJ-UHFFFAOYSA-N
LogP	-1 at 23℃
NIST Chemistry Reference	Copper phthalocyanine(147-14-8)
EPA Substance Registry System	C.I. Pigment Blue 15 (147-14-8)
Absorption	λmax 678 nm (DMF)

Safety Information

Property	Value
Safety Statements	22-24/25
WGK Germany	-
RTECS	GL8510000
TSCA	Yes
HS Code	32041300
Hazardous Substances Data	147-14-8(Hazardous Substances Data)
Toxicity	LD50 intraperitoneal in rat: > 3gm/kg

Product Usage

Copper(II) phthalocyanine is a high-performance organic pigment with brilliant color, strong tinting strength, and excellent weather resistance. In the coatings industry, it is widely used in automotive paints, architectural coatings, and marine paints, imparting bright blue or green hues to the coating. In the ink industry, it serves as an important colorant for color printing inks and packaging inks, offering excellent migration resistance and heat stability. In plastics and rubber, it is used to color polyethylene, polypropylene, and other products, maintaining long-term stability. Additionally, it plays significant roles in textile printing, stationery, and artists' pigments. Its advantages include resistance to acids, alkalis, and solvents, as well as being non-toxic and environmentally friendly.

Factory Showcase

Quality Control Lab

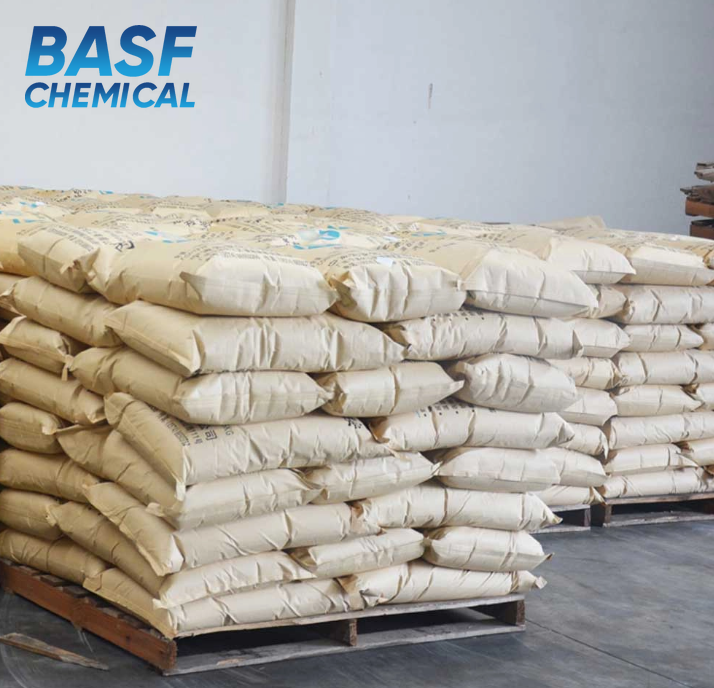

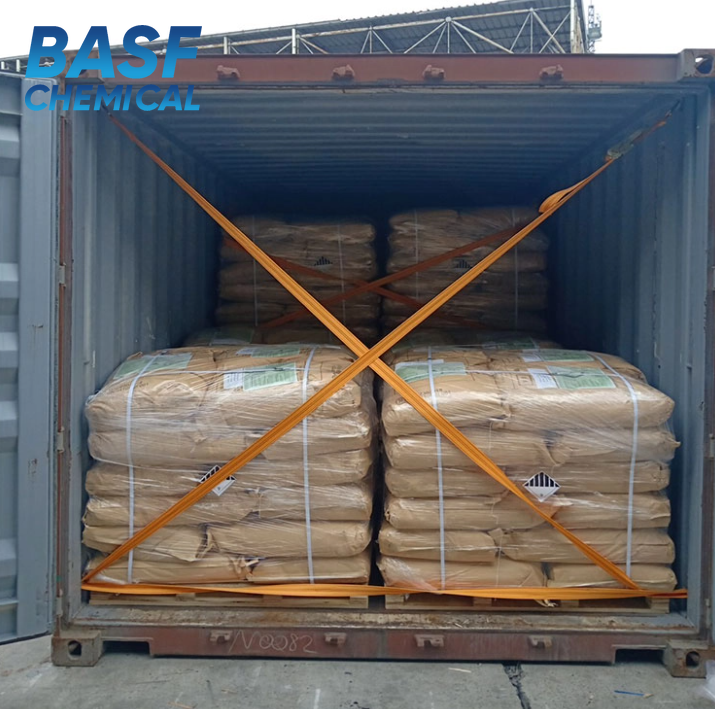

Shipping And Transportation

FAQ

Q1：Does it support customized products?

A1：Yes, it does. Formulations can be adjusted and customized production can be carried out according to customer's industry needs and performance parameters.

Q2：Can samples be provided?

A2：We support free sample delivery and testing services to meet customers' early testing needs.

Q3：Is the product quality stable?

A3：With full-process quality inspection and control, there are minimal batch differences, and the purity and stability strictly meet the standards.

Q4：What is the shipping cycle?

A4：For regular inventory, we offer quick delivery. For customized orders, we arrange production according to demand and ensure timely delivery.
